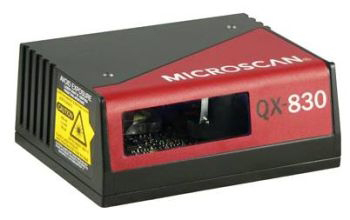

Microscan QX830

The QX-830 industrial barcode scanner combines revolutionary flexible connectivity with high performance decoding capabilities to reliably read 1D barcodes in almost any automation environment. In addition to the Quick Connect System and X-Mode Technology, the QX-830 features IP64 industrial sealing and optional embedded Ethernet protocols.

High performance, simple connectivity, and IP64 enclosure make the QX-830 an ideal industrial barcode scanner for any industrial application.

Quick Connect System: M12 connectors and cordsets. Plug and play setup. Single or multi-scanner solutions??

X-Mode Technology: Decodes damaged, poorly printed, or misaligned codes. Ensures high read rates and throughput.

High Performance: Aggressive decoding capabilities allow reliable reading of barcodes out to 30″ (762 mm), at up to a 10″ (254 mm) beam width.

Real-time Feedback: Visible LED indicators on the side of the scanner and a “good read” green flash projecting from the front window provide confirmation of the scanner’s performance. The green flash is visible within a complete 360 degree radius from the scanner.

Ethernet Protocols: The QX-830 includes optional embedded Ethernet TCP/ IP and EtherNet/IP for high speed communication.

Flexibility: The compact size of the QX-830 allows flexible positioning for a variety of applications.
